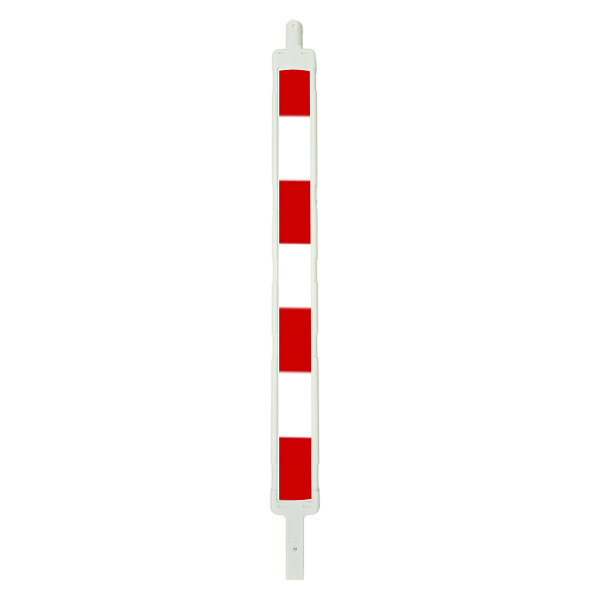

ÜSTÜN STREAM LINE

Available in two main variants, each with different mounting pin dimensions: 40 by 40 mm and 60 by 60 mm, designed to enhance adaptability and efficiently meet our partners’ needs. For each pin of the preceding variants, you can choose between two types of reinforced structure: a rectangular tube made from end-to-end galvanized steel for comprehensive durability, or a Z-shaped steel mount, specifically engineered for the lower part, to optimize stability and resistance. These configurations ensure the panel’s secure installation and enduring performance across various traffic management applications.

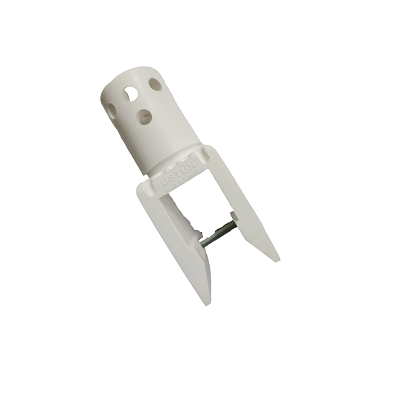

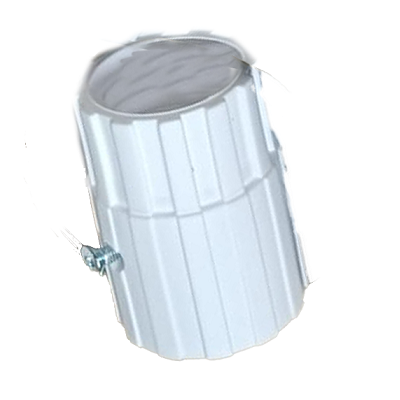

Accesories & Spare Parts

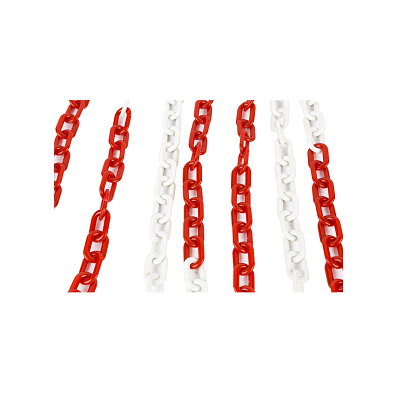

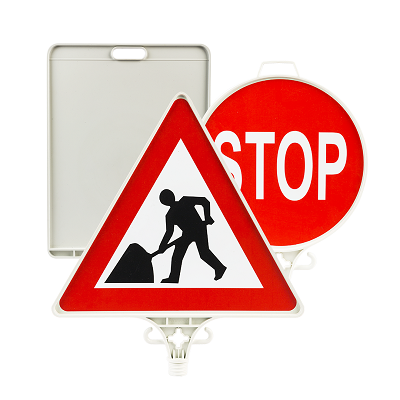

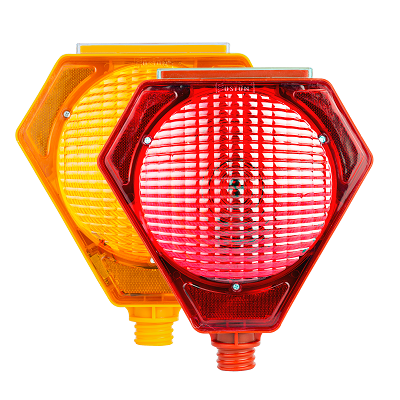

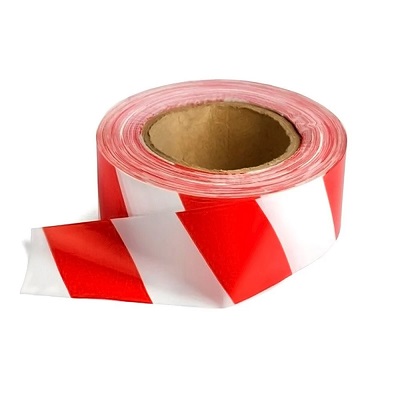

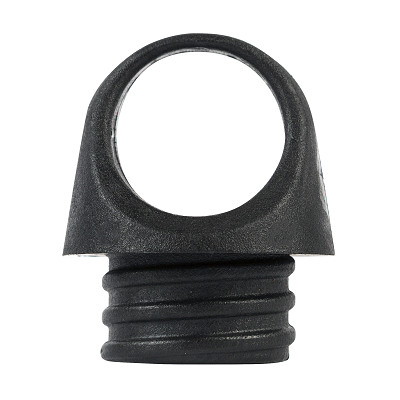

P 236	P 208	P 236	P 212	P 246	P 238	P 238

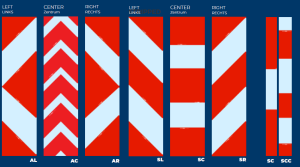

Arrowed

Select an Item Code:Select Quantity:

SKU: UT EUP-SL4T, UT EUP-SL4Z Categories: 05 – DELINEATORS PANELS, B – ROAD WORKS & CONSTRUCTION SITES Tags: prime, primeflex, üstün

CATEGORY	PIC	ITEM CODE	SKU	RECLECTIF FILM TYPE	COMMON DETAILS
		UT EUP-SL4T UT EUP-SL4T-S RA1 UT EUP-SL4T-D RA1 UT EUP-SL4T-S RA2 UT EUP-SL4T -D RA2 UT EUP-SL4T-S RA3 UT EUP-SL4T-D RA3	-	- 1 SIDE RA1 2 SIDE RA1 1 SIDE RA2 2 SIDE RA2 1 SIDE RA3 2 SIDE RA3	PANEL DIMENSIONS: 1285 X 105 x 40 mm REFLECTIVE DIMENSIONS: L : 100 cm X 7 cm MATERIAL / WEIGHT HDPE - 3.6 Kg MATERIAL / WEIGHT HDPE - 7.7 lbs METAL TUBE GALVANIZED: 40 mm REC x 125 cm
		UT EUP-SL4Z UT EUP-SL4Z-S RA1 UT EUP-SL4Z-D RA1 UT EUP-SL4Z-S RA2 UT EUP-SL4Z-D RA2 UT EUP-SL4Z-S RA3 UT EUP-SL4Z-D RA3	-	- 1 SIDE RA1 2 SIDE RA1 1 SIDE RA2 2 SIDE RA2 1 SIDE RA3 2 SIDE RA3	PANEL DIMENSIONS: 1285 X 105 x 40 mm REFLECTIVE DIMENSIONS: L : 100 cm X 7 cm MATERIAL / WEIGHT HDPE - 2.2 Kg MATERIAL / WEIGHT HDPE - 4.85 lbs Z METAL REINFORCEMENT GALVANIZED: 40 mm x 100 mm

Traffic delineator panels are vital for defining road boundaries and guiding vehicles during temporary traffic control situations. These essential safety instruments play a pivotal role in maintaining order and ensuring smooth transitions through construction zones, event spaces, or any area requiring clear demarcation.

COLORS CODES

FARBCODES

YL
RAL 1020

GN
RAL 6024

BL
RAL 5017

RD
RAL 3020

O
RAL 2009

BK
RAL 9017

W
RAL 9016

GR
RAL 7042
